Retrofit Design
Design easily seeking approval of eyes!
Shock Proof and Water Resistant
Everything will be perfect below the roof, Because It's Shock Proof
Scenario Setting
Let your lighting recognize your mood!
Master Control
Your sleep is just one touch away
Recognizable in Night
A mere switch that can be seen well in Night

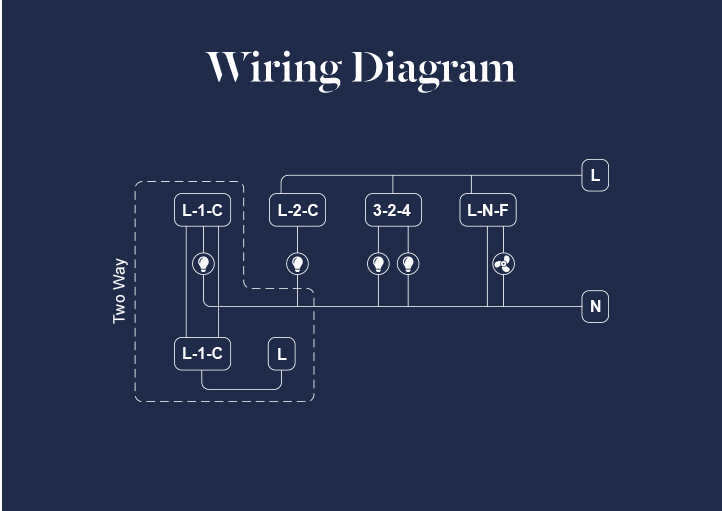

Two Way Provision
Value of your essential reveals unhidden possibilities!
INPUT VOLTAGE
90 to 270 VAC 50 Hz
WORKING TEMPERATURE
0 to 65 Deg. C
OPERATING HUMIDITY
20% to 85% RH
non-condensing
A/C
A/C Compatible up to 2.5 ton
RATED LOAD
Tungsten and Halogen light 1000W
INDUCTIVE LOAD
Fan and Motor 100 W
PROTECTIONS
Input over voltage cut-off, Short circuit, Thermal & Overload Shutdown
SERVICE LIFE
1,00,000 Touch operations and 50,000 operations for Relay
CAPACITIVE LOAD
LED and CFL 400 W
| SIZE | CODE | DETAILS | DISPLAY (MM) | BACK END (MM) |
| 6M | 4SFR 6M | 4 SWITCH + 1 FAN REG. | 135 X 45 | 123 X 53 X 29 |
| 6M | 7S 6M | 7 SWITCH | 135 X 45 | 115 X 53 X 29 |
| 4M | 2SFR 4M | 2 SWITCH + 1 FAN REG. | 90 X 45 | 113 X 53 X 29 |
| 4M | 5S 4M | 5 SWITCH | 90 X 45 | 110 X 53 X 29 |
| 3M | 3S 3M | 3 SWITCH | 67.5 X 45 | 83 X 53 X 29 |
| 2M | 2S 2M | 2 SWITCH | 45 X 45 | 56 X 53 X 36 |
| 2M | 1S 2M | 1 SWITCH | 45 X 45 | 56 X 53 X 36 |
| 2M | SHL 2M | SWITCH HIGHLOAD | 45 X 45 | 56 X 53 X 36 |
| 2M | BELL 2M | BELL | 45 X 45 | 56 X 53 X 36 |
| 2M | CURTAIN 2M | CURTAIN | 45 X 45 | 56 X 53 X 36 |
| 2M | DIMMER 2M | DIMMER | 45 X 45 | 56 X 53 X 36 |
We are in a world where comfort is essential than anything else. It's all about 'If something can be done very easily then no one is interested in the ways that are toughest throughout and time-consuming as well.'
